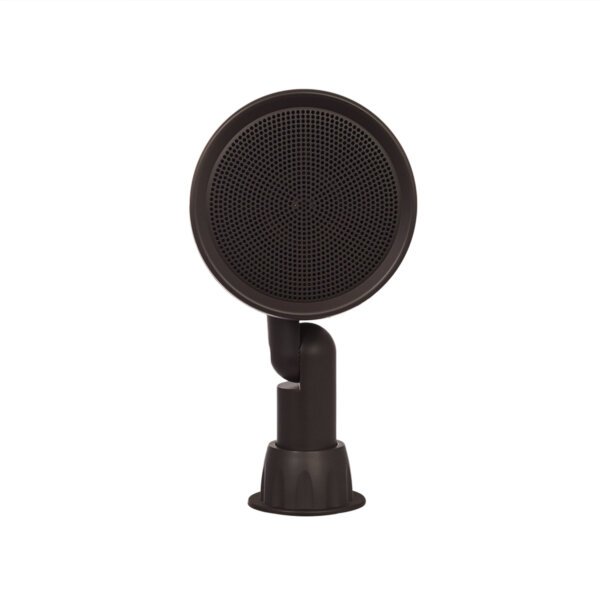

SC-OG-4

4” (100mm) 2-way High-Performance Outdoor Satellite Speaker

4” 2-Way 70V/100V/8Ohm Landscape Satellite Speaker

Description

The SpeakerCraft SC-OG-4 features durable weatherproof design that ensures years of reliable performance. The new speakers incorporate nickel-plated brass fittings that address a common failure point among other landscape speakers that use plastic-plated fittings. The Satellites can operate in traditional 8ohm mode, but also have adjustable 70V/100V tap switch settings. This enables installation and amplification modes favored by many installers, and allows users to set the volume of each speaker individually. The 110-degree wide dispersion ensures wide audio coverage in all outdoor spaces.

Features

  • 4″ (100mm) Polypropylene Cone Woofer with NBR Surround
  • 3/4″ (20mm) Aluminum Dome Tweeter
  • Weather-Resistant Fiberglass-Reinforced ABS Enclosure
  • Sensitivity: 84dB
  • Frequency Response: 110Hz-20kHz +/- 3dB
  • Power Handling: Up to 90W
  • Nominal Impedance: 8 ohms (in Bypass Mode)
  • Tap Settings: 70V/100V: 3.75W (70V only), 7.5W, 15W, 30W, 8 Ohm (Bypass)
  • 110-degree wide dispersion
  • Mounting accessories not included

Specifications

Line Voltage: : 70V/100V
Transformer Tap Settings: : 3.75W (70V only), 7.5W, 15W, 30W, 8 Ohm (Bypass)

Other Specifications

General
  • Woofer Size4 (Inches)
  • Woofer ConstructionPolypropylene Cone Woofer with NBR Surround
  • Frequency Response110Hz- 20Khz
  • Impedance8 (Ohms)
  • Power Handling90 (Watts)
  • Sensitivity84 (dB)
  • Crossover2.8kHz
  • DimensionsLxWxH, in/mm: 9.98 x 5.87 x 10.28 / 253.4 x 149.2 x 261.2 with arm extended
Shipping Info
  • Length10.2 (Inches)
  • Width10.2 (Inches)
  • Height12.6 (Inches)
  • Weight7.75 (Lbs)
  • Unit of MeasureEach
  • UPC664254021572
  • Master Pack Qty4
Other Specifications
  • Line Voltage: 70V/100V
  • Transformer Tap Settings: 3.75W (70V only), 7.5W, 15W, 30W, 8 Ohm (Bypass)

Warranty

Limited Lifetime
