AIM MDU Single

AIM MDU Single, Box Speaker

Perfect for condos, apartments, and townhouses.

Description

There are certain situations where the use of in-wall or in-ceiling speakers are simply not feasible. The Multiple Dwelling Unit or MDU is a perfect example. Sound transference into an adjoining unit, code restrictions that prevent cutting into the wall or ceiling surface or the use of concrete or brick in the construction process are all reasons that make a flush-mounted speaker unworkable.

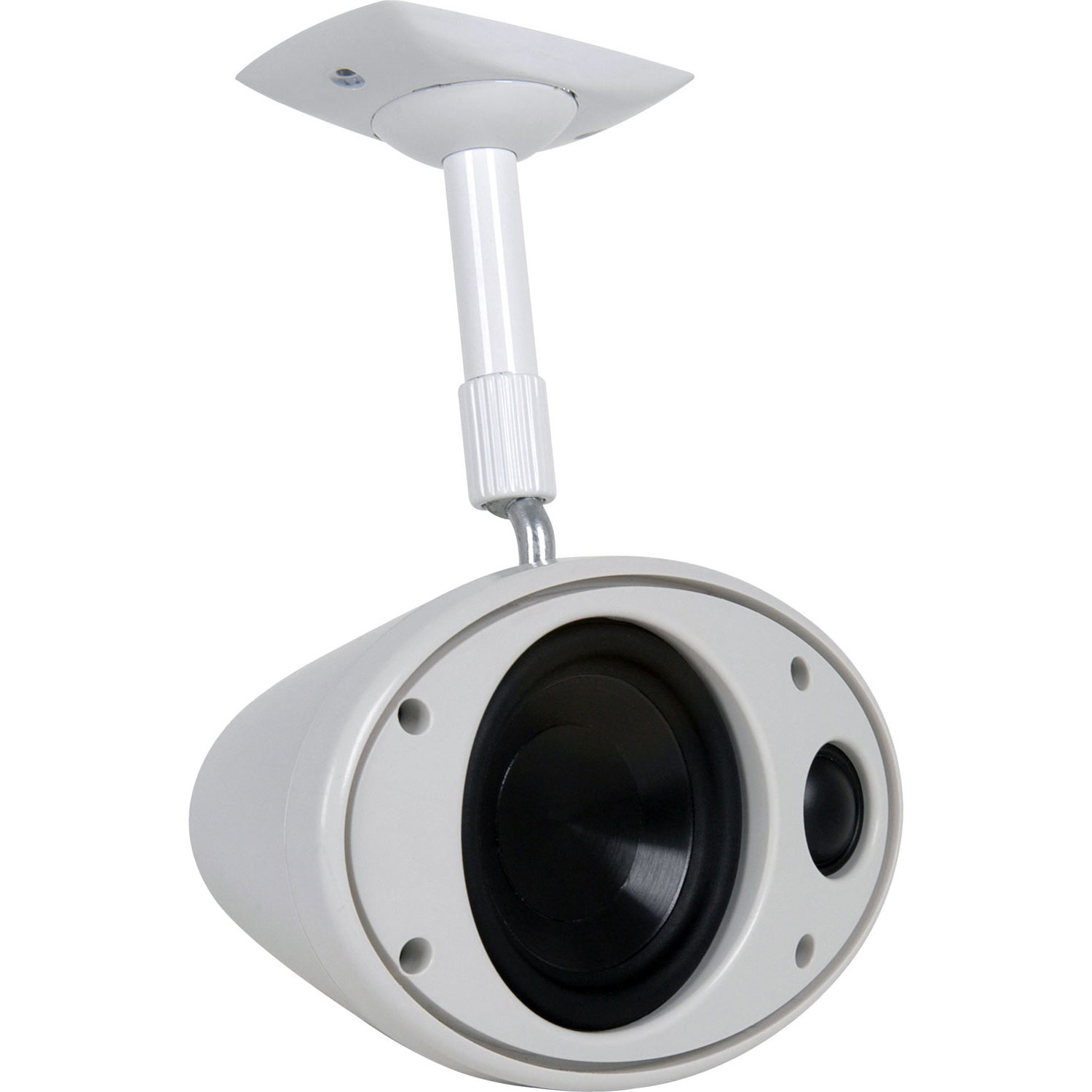

The SpeakerCraft MDU speaker allows for great sound reproduction in these situations with an elegant and functional solution. The speaker is mounted to the ceiling via a standard J-box or attached directly to the ceiling joist. The multi-pivot bracket allows the speaker to be aimed at the listening area from any position in the room. The ported cabinet houses a 4-inch woofer and a 3/4 -inch dome tweeter that deliver a smooth and open sonic presentation. Matched to any of our freestanding subwoofers, the MDU will fill any room in a condo, town home or apartment with an incredible musical experience.

Specifications

Tuned and Ported Enclosure
Bracket Dimensions: (H) 9 1/2″ (241 mm)

Other Specifications

General
  • Woofer Size4 (Inches)
  • Woofer Construction4″ IMG Cone Woofer
  • Tweeter1″ Silk Dome Tweeter
  • Frequency Response78Hz – 20kHz
  • Impedance8
  • Power Handling60 (Watts)
  • Sensitivity87 (dB)
  • TimbreTimbre-Matched to All One Series Speakers
  • Dimensions(H x W x D) 4 25/32″ x 7 5/16″ x 4 3/16″ (122 mm x 186 mm x 106 mm)
Shipping Info
  • Length8.7 (Inches)
  • Width8.2 (Inches)
  • Height8.9 (Inches)
  • Weight3.65 (Lbs)
  • Unit of MeasureEach
  • UPC664254824814
  • Master Pack Qty4
Other Specifications
  • Tuned and Ported Enclosure
  • Bracket Dimensions: (H) 9 1/2″ (241 mm)

Warranty

Limited Lifetime Warranty
