Description

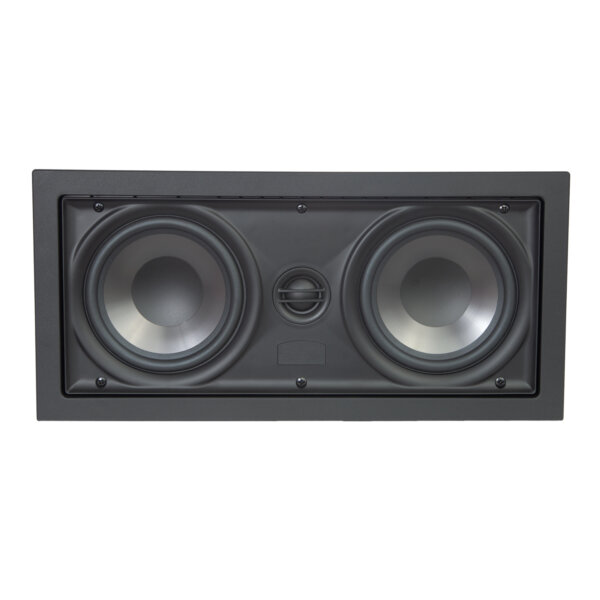

Featuring Two 5 1/4 -inch Injection Molded Poly Cones, and 1-inch aimable silk dome tweeter the DX-FW5-LCR is ideal for immersive music, movies and gaming applications
where excellent performance and robust dynamics are required.
Features
Two 5 1/4 Inch Injection Molded Polypropylene Woofers
The IM process yields stability, consistent performance for in wall LCR applications.
1 Inch Aimable Silk Dome Tweeter
The pivoting tweeter can be aimed towards the ideal sweet spot position.
Low Profile Grill
A thin-bezel magnetic grille ensures a secure fit, pleasing aesthetic and with a one-step paint process, Blends discreetly into
any décor
Easy-Grip Tweeter Bridge
Installing speakers above your head requires a sturdy grip point and the SpeakerCraft Tweeter bridge ensures you have one.
We even protect the tweeter from accidental finger pokes
Precision Tooled Diffusion Baffle
scattered concavities reduce reflection and disperse the sound evenly for a natural room filling experience.
Secure Connection
All SpeakerCraft speakers feature spring loaded binding posts that provide a secure, worry-free connection in the wall or ceiling
Timber and Performance Matched
Expect consistent dynamic and detailed sound in every Stage F series speaker
Specifications
Woofer Size: Dual 5-1/4″ / 130mm
Woofer Construction: Injection Molded Polypropylene Cone
Tweeter: 1″ / 25mm Pivoting Silk Dome
Frequency Response: 48Hz-20kHz
Impedance: 8 (Ohms)
Power Handling: 110 (Watts)
Sensitivity: 90(dB)
Timbre: Timbre-Matched to all Focus Series Speakers
Dimensions: 15.6″ / 396mm Width x 7.76″ / 197mm Height x 3.9″ / 99mm Depth
Hole Cutout Dimensions: 6.2″ / 157.2mm Width x 14.5″ / 369mm Height
Mounting Depth: 3.8″ / 96mm
