PROFILE ACCUFIT ULTRA SLIM THREE

PROFILE ACCUFIT ULTRA SLIM THREE

Shallow Depth In-Ceiling Speaker

Description

The AccuFit UltraSlim Series features a shallow 2”, steel enclosure to address space limitations, building code requirements, sound transfer to adjoining walls and living environment concerns. The Profile AccuFit UltraSlim Series of shallow depth, fully enclosed speakers ensure that the drivers have the proper amount of air space to deliver the best performance regardless of the installation environment.

Features

  • 3-Way, Shallow-Depth, Tuned Port, Magnetically Shielded Steel Enclosure

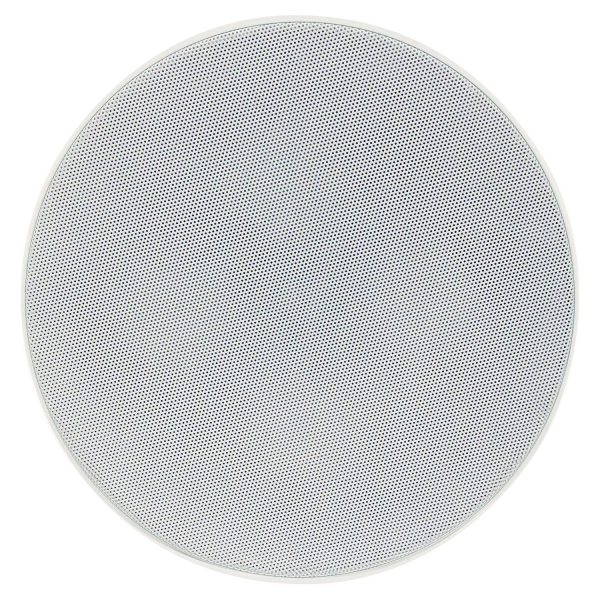

  • Flangeless Appearance with Magnetically Attached Full Coverage Steel Grille
  • Two 3” Custom Aluminum Inverted Dome Woofers
  • Two 3” Custom Aluminum Inverted Dome Midrange Drivers
  • 3/4” Aluminum Tweeter
  • Extreme, Shallow-Depth Mounting Capability, Needing only 2” (51mm) of Depth
  • Sensitivity: 90dB 1W/1m
  • Timbre-Matched to All THREE Series Speakers
  • Power Handling: 60 Watts
  • Impedance: 8 Ohm
  • Frequency Response: 90Hz – 20kHz
  • STL (Sound Transmission Loss) Feature, 20dBA Sound Reduction / Measuring signal: Pink Noise
  • Diameter x Depth: 9 15/16” x 2” (252mm x 51mm)
  • Cut-Out Diameter: 8 1/4” (210mm)

Other Specifications

General
  • FamilyProfile Specialty
  • Woofer Size3 (Inches)
  • Woofer ConstructionTwo 3″ Custom Aluminum Inverted Dome Woofers
  • Midrange DriverTwo 3″ Custom Aluminum Inverted Dome Midrange Drivers
  • Tweeter3/4″ Aluminum Tweeter
  • Frequency Response90Hz – 20kHz
  • Impedance8 (Ohms)
  • Power Handling60 (Watts)
  • Sensitivity90 (dB)
  • TimbreTimbre-Matched to All THREE Series Speakers
  • DimensionsDiameter x Depth: 9 15/16″ x 2″ (252mm x 51mm)
  • Hole Cutout Dimensions8 1/4″ (210mm)
Shipping Info
  • Length11.9 (Inches)
  • Width11.9 (Inches)
  • Height6.1 (Inches)
  • Weight4.9 (Lbs)
  • Unit of MeasureEach
  • UPC664254021312
  • Master Pack Qty4
