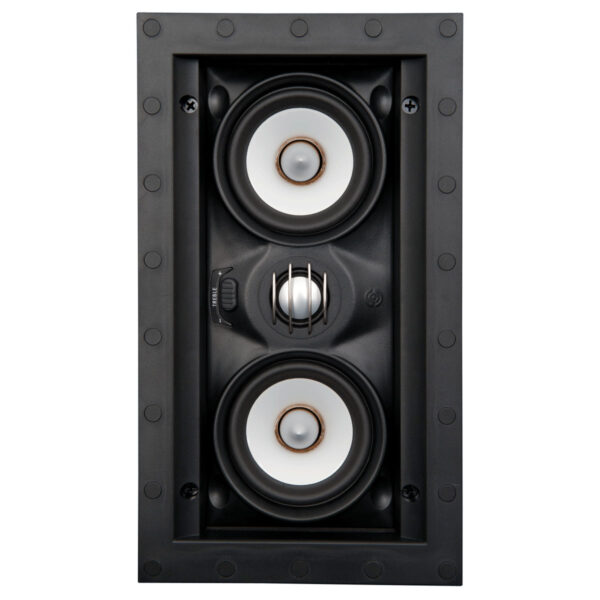

Profile AIM LCR3 Three

Description

AIM LCR speakers deliver powerful, compelling home theater sound in slim, easy-to-mount in-wall models. The front baffles tilt so you can aim the sound exactly where you want it. AIM LCR and AIM LCR3 models are available with Profile grilles as an option.

Features

  • Flangeless Appearance
  • Pivoting Baffle
  • Two 3″” Aluminum Woofers with Phase Plugs
  • Pivoting 3⁄4″” Aluminum Tweeter
  • 2-Position Treble EQ Switch
  • Sensitivity: 86dB 1W/1m
  • Power Handling: 60 Watts
  • Impedance: 8 Ohm
  • Frequency Response: 78Hz – 20kHz
  • Dimensions: (H x W x D) 101⁄2″” x 6″” x 3″” 254 mm x 146 mm x 76 mm (with Grille)
  • Wall Cut-Out: (H x W) 9″” x 43⁄4″” 227 mm x 120 mm”

Specifications

General
  • FamilyProfile AIM LCR
  • Woofer Size3 (Inches)
  • Woofer ConstructionTwo 3″ Aluminum Cone Woofers with Phase Plugs
  • Frequency Response78Hz – 20kHz
  • Impedance8 (Ohms)
  • Power Handling60 (Watts)
  • Sensitivity86 (dB)
  • TimbreTimbre-Matched to All Three Series Speakers
  • SwitchesFront-Mounted 2-Position Treble Adjustment Switch
  • Dimensions(H x W x D) 10-1/4″ x 6″ x 3″ (260 mm x 152 mm x 76 mm)
  • Hole Cutout Dimensions(H x W) 9″ x 4-3/4″ (227 mm x 120 mm)
Shipping Info
  • Length12.1 (Inches)
  • Width7.7 (Inches)
  • Height4.6 (Inches)
  • Weight4.95 (Lbs)
  • Unit of MeasureEach
  • Master Pack Qty4
Other Specifications
  • Flangeless Appearance
  • Pivoting Woofer Baffle
  • Two 3″ Aluminum Cone Woofers with Phase Plugs
  • Pivoting ¾ Aluminum Dome Tweeter
  • Front-Mounted 2-Position Treble Adjustment Switch
  • U.S. Patent No. 7,522,742 B2

Other Specifications

Flangeless Appearance
Pivoting Woofer Baffle
Two 3″ Aluminum Cone Woofers with Phase Plugs
Pivoting ¾ Aluminum Dome Tweeter
Front-Mounted 2-Position Treble Adjustment Switch
U.S. Patent No. 7,522,742 B2
