PROFILE AIM7 FIVE

AIM7 FIVE

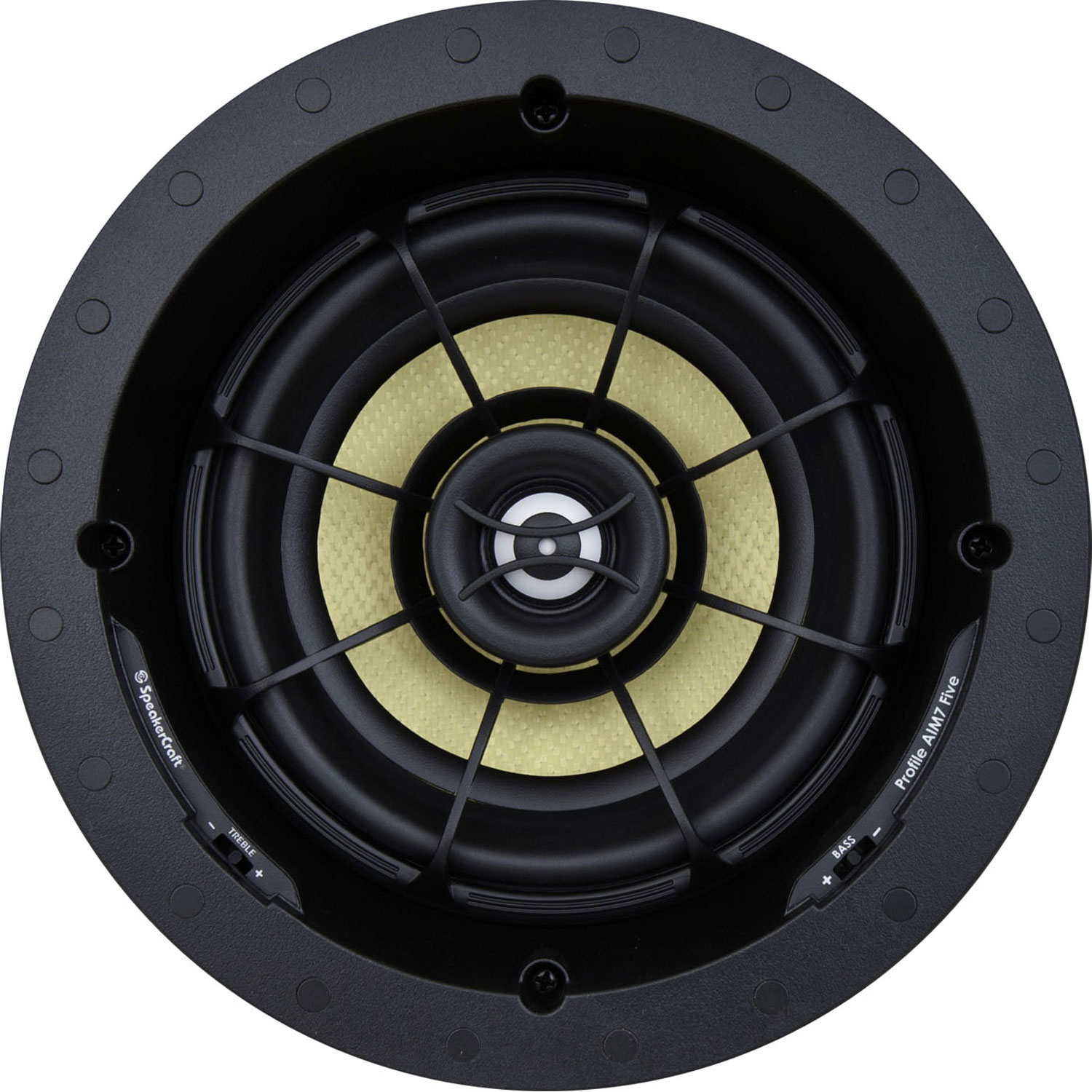

Profile AIM7 Five

Description

AIM Series in-ceiling speakers were the first to feature an aimable woofer/tweeter module that aims the sound in any direction you choose. No longer are you bound by the design of your room. Just mount the speakers wherever it’s convenient and point them wherever you want sound. Profile grilles are available in AIM8, AIM7 and AIM5 models.

Specifications

Flangeless Appearance
Pivoting and Rotating 7″ Kevlar® Cone Woofer
Pivoting 1″ Magnesium/Aluminum Dome Tweeter
WavePlane Technology
Front-Mounted Bass & Treble Equalization Switches

Other Specifications

General
  • FamilyProfile AIM
  • Woofer Size7 (Inches)
  • Frequency Response35Hz – 20kHz
  • Impedance8 (Ohms)
  • Power Handling150 (Watts)
  • Sensitivity91 (dB)
  • TimbreTimbre-Matched to All Five Series Speakers
  • Dimensions9 5/8″ x 5 1/8″ (251 mm x 130 mm) (with Grille)
  • Hole Cutout Dimensions8 1/4″ (210 mm)
Shipping Info
  • Length11.5 (Inches)
  • Width11.3 (Inches)
  • Height6.7 (Inches)
  • Weight5.65 (Lbs)
  • Unit of MeasureEach
  • Master Pack Qty4
Other Specifications
  • Flangeless Appearance
  • Pivoting and Rotating 7″ Kevlar® Cone Woofer
  • Pivoting 1″ Magnesium/Aluminum Dome Tweeter
  • WavePlane Technology
  • Front-Mounted Bass & Treble Equalization Switches

Warranty

Limited Lifetime Warranty
