PROFILE AIM8 DT THREE

PROFILE AIM8 DT THREE

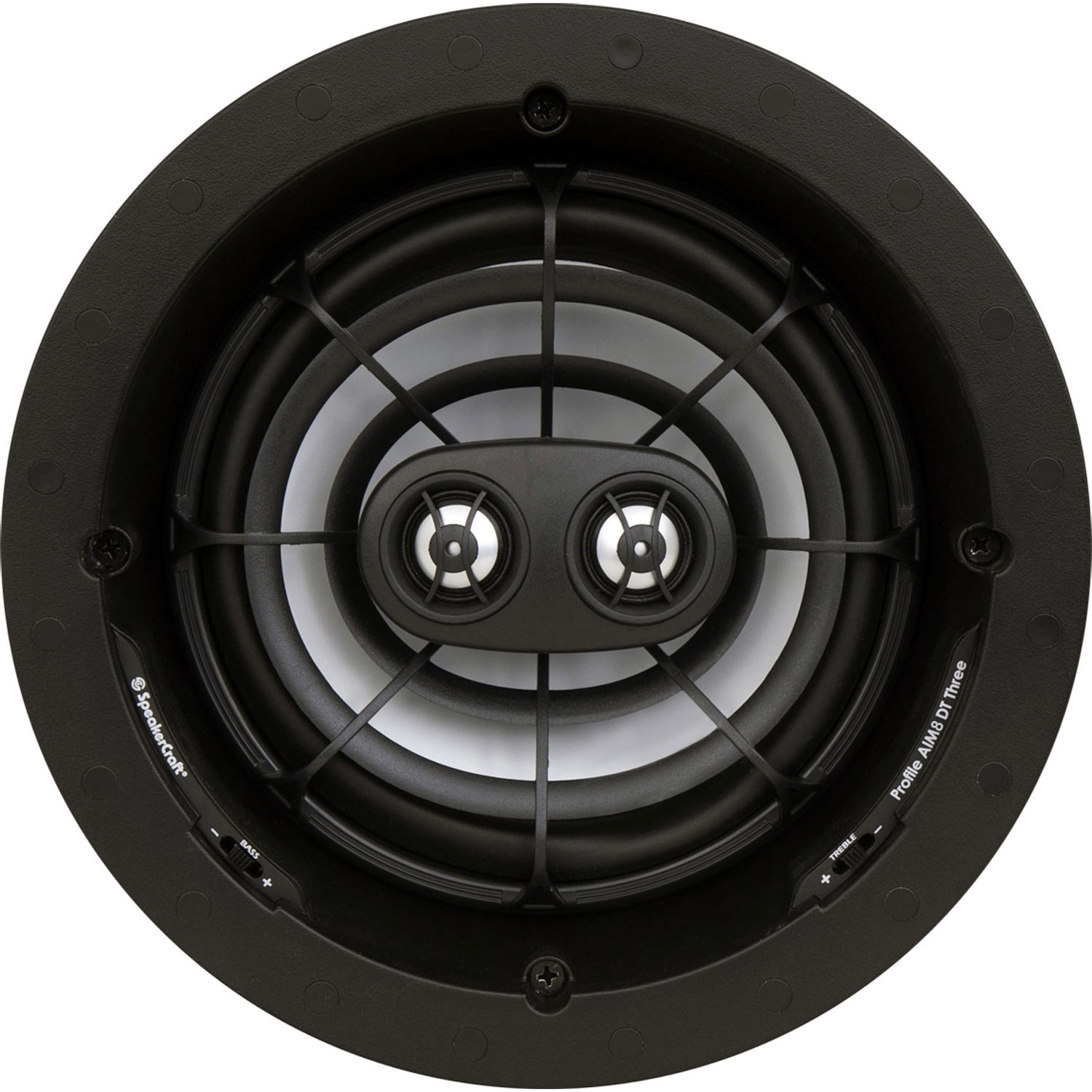

Profile AIM8 DT Three

Description

AIM Series in-ceiling speakers were the first to feature an aimable woofer/tweeter module that aims the sound in any direction you choose. No longer are you bound by the design of your room. Just mount the speakers wherever it’s convenient and point them wherever you want sound. Profile grilles are available in AIM8, AIM7 and AIM5 models.

Specifications

Flangeless Appearance
Pivoting 8″ Aluminum Cone Woofer with Dual Voice Coil and Rubber Surround
Dual Pivoting 1″ Aluminum Dome Tweeters
WavePlane Technology
Front-Mounted Bass & Treble Equalization Switches

Other Specifications

General
  • FamilyProfile Specialty
  • Woofer Size8 (Inches)
  • Woofer ConstructionPivoting 8″ Aluminum Cone Woofer with Dual Voice Coil and Rubber Surround
  • TweeterDual Pivoting 1″ Aluminum Dome Tweeters
  • Frequency Response40Hz – 20kHz
  • Impedance8 (Ohms)
  • Power Handling100 (Watts)
  • Sensitivity92 (dB)
  • TimbreTimbre-Matched to All Three Series Speakers
  • SwitchesFront-Mounted Bass & Treble Equalization Switches
  • Dimensions11″ x 5 3/4″ (291 mm x 147 mm) (with Grille)
  • Hole Cutout Dimensions9 3/4″ (248 mm)
Shipping Info
  • Length13.1 (Inches)
  • Width13.2 (Inches)
  • Height7.2 (Inches)
  • Weight6.7 (Lbs)
  • Unit of MeasureEach
  • Master Pack Qty4
Other Specifications
  • Flangeless Appearance
  • Pivoting 8″ Aluminum Cone Woofer with Dual Voice Coil and Rubber Surround
  • Dual Pivoting 1″ Aluminum Dome Tweeters
  • WavePlane Technology
  • Front-Mounted Bass & Treble Equalization Switches

Warranty

Limited Lifetime Warranty
